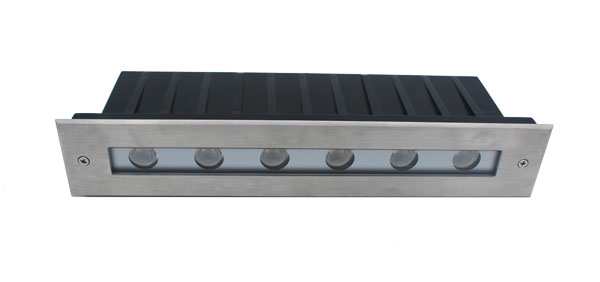

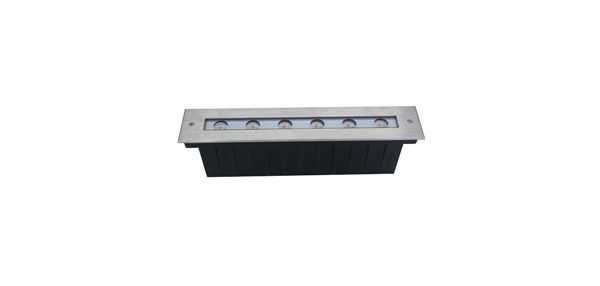

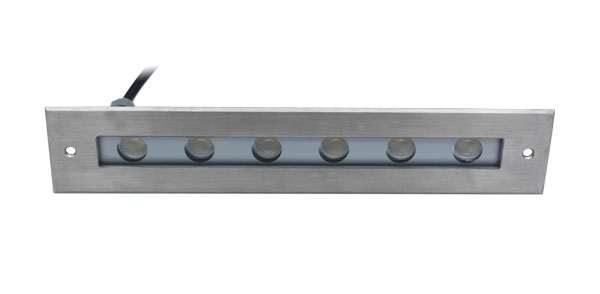

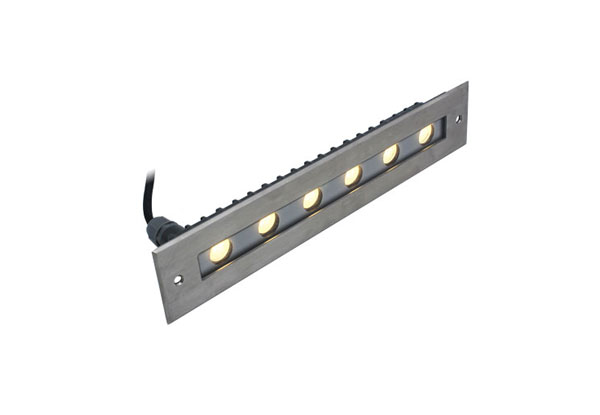

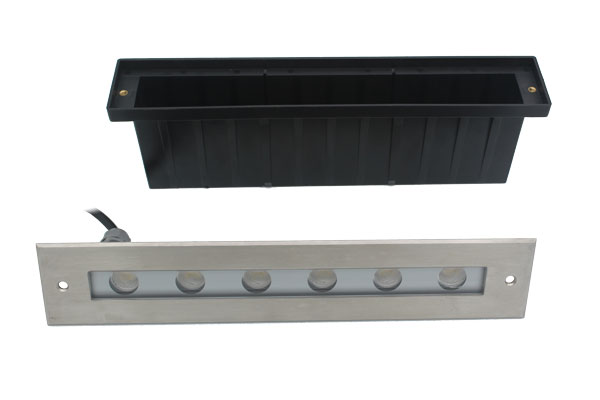

6 LEDs Wallwasher In-ground Light

Housing：	12# Die-casting grey powder coated aluminum.
Front ring：	Stainless steel 316L#.
Light Window：	Tempered clear glass. T=8mm.
Waterproof seal：	Molding shaped silicone seal.
Cable gland：	IP-68 PG-9 PVC.
Dimming model：	DMX512/RGB/1-10V.
Power cable：	H05 RN-F L=2.0m.

Detail


Product Code	FZ-IG02S6x2	FZ-IG02S6x2A	FZ-IG02M6x3	FZ-IG02DMX6x3
Input Voltage(V)	DC24	DC24	DC24	DC24
Power(W)	3x2	3x2	3x3	3x3
LEDs Type	High Power LEDs
Luminous(Lm)	1100	875	402	402
CCT(K)/Color	3000/6000	3000/6000	RGB 3 in1	RGB 3 in1
Beam Angle(°)	15/30/45/60	45\|35	30	30
Materials	12# Die-casting Grey Powder Coated Aluminum Light Body+Tempered Glass
Control Model	1-10V	1-10V	RGB Control	DMX512 Control

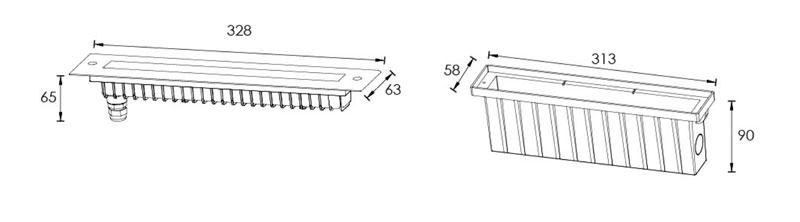

Dimension(mm)	L328xW63xH65
IP Grade	IP67
IK Rate	IK08
Warranty(Years)	2
