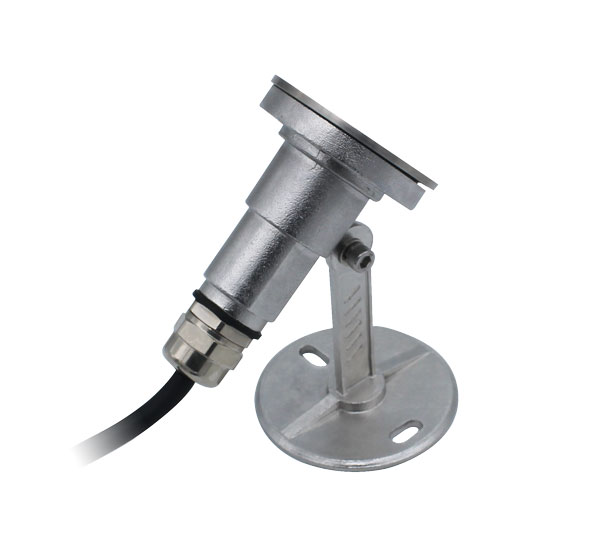

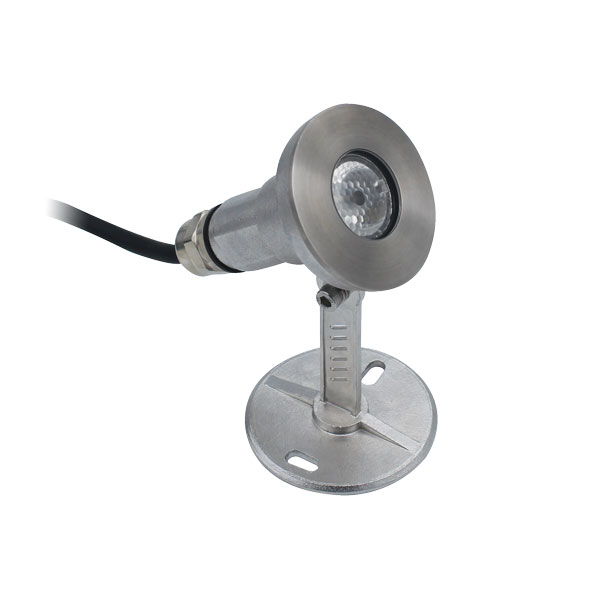

SS316 1 LEDs Underwater Spot Light

Power：	IP-68 M16a copper with nickel-coated.
Housing：	Stainless steel 316L#.
Light Window：	Tempered glass. T=7mm.
PCB：	Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w/mk.
Waterproof seal：	EPDM gasket.
Cable gland：	IP-68 M16a copper with nickel-coated.
Dimming model：	DMX512/RGB/PWM /1-10V.
Power cable：	H07/05 RN-F L=3.0m.

Detail


Product Code	FZ-US01S1x2	FZ-US01M1x3	FZ-US01DMX1x3
Input Voltage(V)	DC12/24
Power(W)	1x2	1x3	1x3
LEDs Type	High Power LEDs
Luminous(Lm)	WW=98 CW=120	56	103

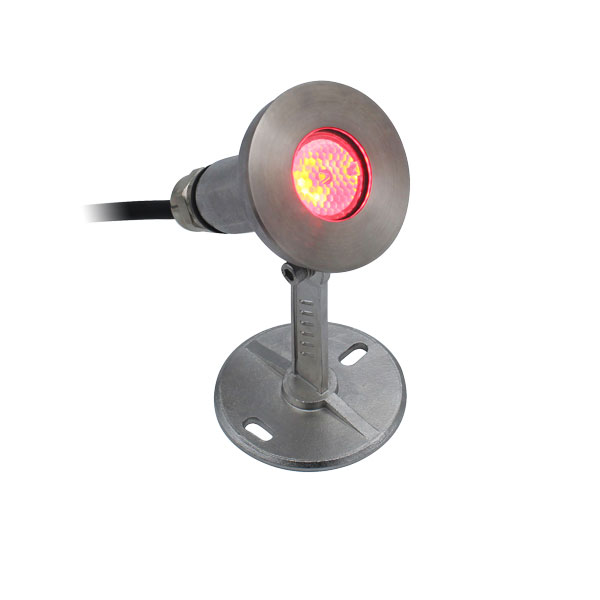

CCT(K)/Color	3000/6000	RGB 3 in 1	RGB 3 in 1
Beam Angle(°)	30	30	30
Materials	SS316 Light Body+Tempered Glass
Control Model	1-10V	RGB Control	DMX512 Control

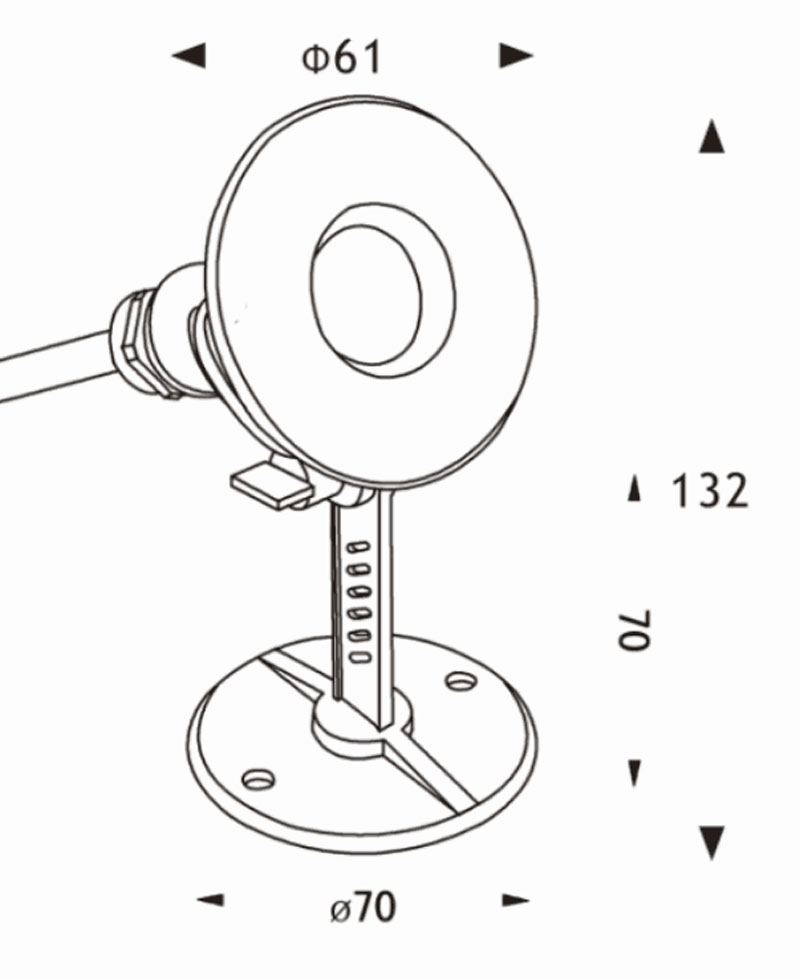

Dimension(mm)	D61xH132
IP Grade	IP68
IK Rate	IK08
Warranty(Years)	2
