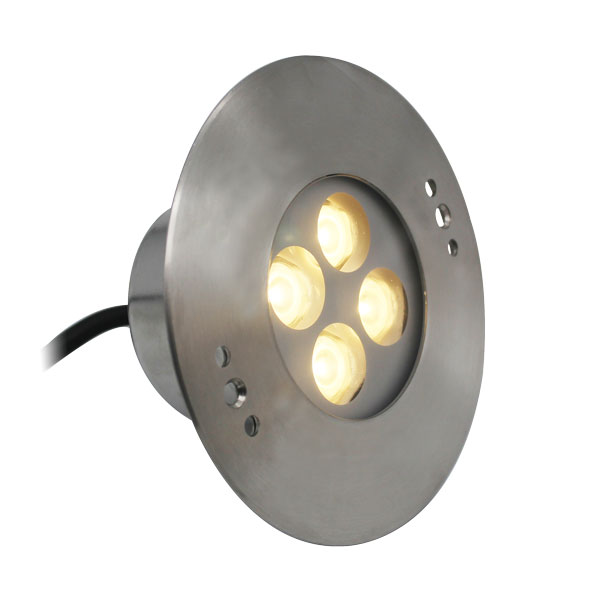

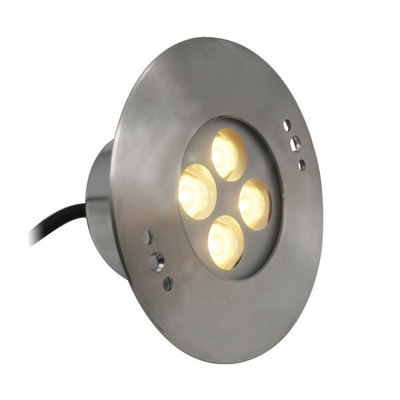

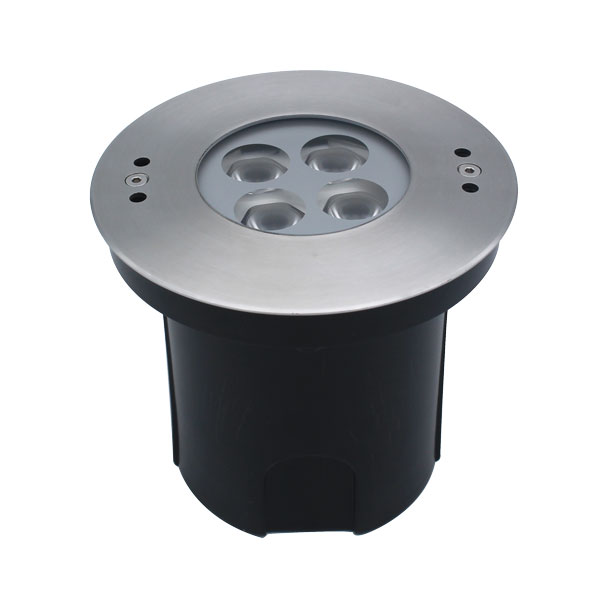

SS316 4 LEDs Embedded Pool Light

Housing：	Stainless steel 316L#.
Light Window：	Tempered glass. T=7mm.
PCB：	Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w/mk.
Waterproof seal：	EPDM gasket.
Cable gland：	IP-68 M16a copper with nickel-coated.
Dimming model：	DMX512/RGB/PWM /1-10V.
Power cable：	H07/05 RN-F L=3.0m.

Detail

316 3颗嵌入.jpg

Product Code	FZ-UR01S4x2	FZ-UR01S4x2A	FZ-UR01M4x3	FZ-UR01DMX4x3
Input Voltage(V)	DC24
Power(W)	4x2	4x2	4x3	4x3
LEDs Type	High Power LEDs
Luminous(Lm)	WW=415 CW=467	WW=480 CW=511	262	262
CCT(K)/Color	3000/6000	3000/6000	RGB 3 in1	RGB 3 in1
Beam Angle(°)	15/30/45/60	45\|35	30	30
Materials	SS316 Light Body+Tempered Glass
Control Model	1-10V	1-10V	RGB Control	DMX512 Control

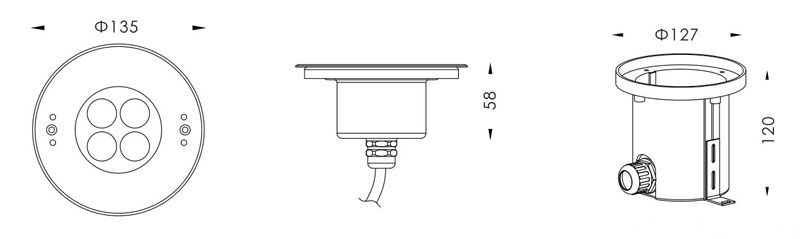

Dimension(mm)	D135xH58
IP Grade	IP68
IK Rate	IK08
Warranty(Years)	2
